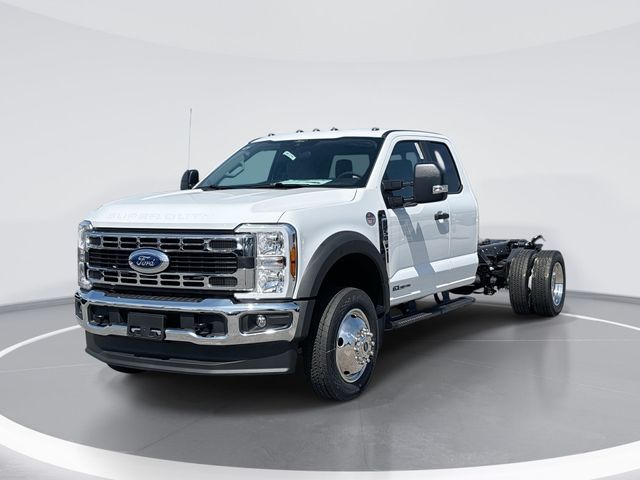

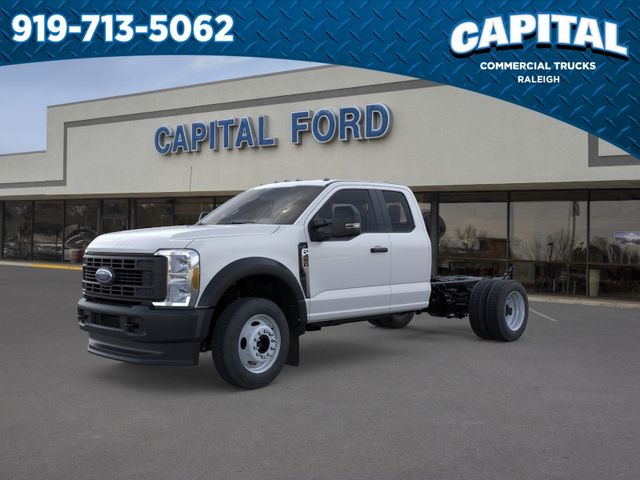

New 2026 Ford Chassis Cab F-450® XL
- VIN: 1FD9X4HT5TED03612
- Stock: DM2F8884
(33) Photos
(1) Videos
/
On Lot
Details Form Opened
Details
New 2026 Ford Chassis Cab F-450® XL
VIN: 1FD9X4HT5TED03612STOCK: DM2F8884
Basic Info
-
Exterior:Oxford White
-
Drivetrain:4X4
-
Interior:Medium Dark Slate
-
Transmission:Ten-Speed Automatic Transmission with Selectable Drive Modes
-
Engine:6.7L 4 Valve OHV Power Stroke® V8 Turbo Diesel B20 Engine with Manual Push-button Engine-Exhaust Braking
Key Features
-
AWD
-
Bluetooth
-
Keyless Entry
-
Side-Impact Air Bags
-
WiFi Hotspot
Description
Oxford White 2026 Ford F-450SD 10FT DUMP/NO SIDES Super Cab Power Stroke 6.7L V8 DI 32V OHV Turbodiesel 4WD ABS brakes, Compass, Heated door mirrors, Illuminated entry, Low tire pressure warning, Remote keyless entry, Traction control. The dealer has added these accessories to this vehicle: - Admin Fee ($899) - Door Cup and Edge Guards ($199) - Window Tint ($299) - 10FT DUMP/NO SIDES ($14,408) Price includes: $1000 - Retail Customer Cash. Exp. 07/06/2026 Price includes dealer added accessories.
Vehicle Details
Exterior
- Black Fender Flares
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Manual Extendable Trailer Style Mirrors
- Fixed Rear Window
- Variable Intermittent Wipers
- Aluminum Panels
- Front Splash Guards
- Reverse Opening Rear Doors
- Autolamp Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
- Cab Clearance Lights
- Perimeter/Approach Lights
Interior
- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
- 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
- Manual Tilt/Telescoping Steering Column
- Front Cupholder
- Rear Cupholder
- Compass
- Cruise Control w/Steering Wheel Controls
- Manual Air Conditioning
- HVAC -inc: Underseat Ducts
- Locking Glove Box
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Day-Night Rearview Mirror
- Front Map Lights
- Fade-To-Off Interior Lighting
- Delayed Accessory Power
- Driver Information Center
- Outside Temp Gauge
- Digital/Analog Appearance
- Front Center Armrest w/Storage
- Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
- Perimeter Alarm
- Securilock Anti-Theft Ignition (pats) Immobilizer
- Air Filtration
Entertainment
- Fixed Antenna
- 6 Speakers
- 2 LCD Monitors In The Front
Mechanical
- 4.88 Axle Ratio
- GVWR: 16,500 lb Payload Package
- 50-State Emissions System
- Transmission w/Driver Selectable Mode and Oil Cooler
- Electronic Transfer Case
- Part-Time Four-Wheel Drive
- 68-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
- Trailer Wiring Harness
- HD Gas-Pressurized Shock Absorbers
- Front And Rear Anti-Roll Bars
- Firm Suspension
- Hydraulic Power-Assist Steering
- 40 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Dual Rear Wheels
- Auto Locking Hubs
- Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
- Upfitter Switches
Safety
- Driveline Traction Control
- Side Impact Beams
- Dual Stage Driver And Passenger Seat-Mounted Side Airbags
- Pre-Collision Assist with Automatic Emergency Braking (AEB)
- Collision Mitigation-Front
- Tire Specific Low Tire Pressure Warning
- Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
- Safety Canopy System Curtain 1st And 2nd Row Airbags
Tech Specs
- Vehicle Name: Ford Super Duty F-450 DRW
- Body Style: SD Super Cab
- Body Code: H
- Drivetrain: Four Wheel Drive
- Passenger Capacity: 6
- Base Curb Weight: 8000
- Gross Axle Wt Rating - Front: 5200
- Gross Axle Wt Rating - Rear: 12880
- Curb Weight - Front: 4121
- Curb Weight - Rear: 3177
- Gross Vehicle Weight Rating Cap: 16500
- Gross Combined Wt Rating: 30000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 17500
- Wt Distributing Hitch - Max Tongue Wt.: 1750
- Fifth Wheel Hitch - Max Trailer Wt.: 21300
- Fifth Wheel Hitch - Max Tongue Wt.: 5325
- Maximum Trailering Capacity: 17500
- Engine Order Code: 99T
- Engine Type: Intercooled Turbo Diesel V-8
- Displacement: 6.7 L/406
- Fuel System: Diesel Direct Injection
- SAE Net Horsepower @ RPM: 330 @ 2200
- SAE Net Torque @ RPM: 950 @ 1800
- Trans Order Code: 44G
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Reverse Ratio (:1): 4.70
- Trans Power Take Off: Yes
- Trans PTO Access: Yes
- Transfer Case Model: Electronic
- Transfer Case Power Take Off: Yes
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 190
- Engine Oil Cooler: None
- Suspension Type - Front: Other
- Suspension Type - Rear: Leaf
- Spring Capacity - Front: 5200
- Spring Capacity - Rear: 12880
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: 7000
- Axle Capacity - Rear: 12880
- Axle Ratio (:1) - Front: 4.88
- Axle Ratio (:1) - Rear: 4.88
- Front Tire Order Code: TGJ
- Rear Tire Order Code: TGJ
- Spare Tire Order Code:
- Front Tire Size: LT225/70SR19.5
- Rear Tire Size: LT225/70SR19.5
- Spare Tire Size:
- Front Tire Capacity: 7500
- Rear Tire Capacity: 15000
- Revolutions/Mile @ 45 mph - Front: 647
- Revolutions/Mile @ 45 mph - Rear: 647
- Front Wheel Size: 19.5 X 6
- Rear Wheel Size: 19.5 X 6
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb: 48.1
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15.4
- Rear Brake Rotor Diam x Thickness: 15.8
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Aux Fuel Tank Capacity, Approx:
- Front Head Room: 40.8
- Front Leg Room: 43.9
- Front Shoulder Room: 66.7
- Front Hip Room: 62.5
- Second Head Room: 40.3
- Second Leg Room: 33.5
- Second Shoulder Room: 65.8
- Second Hip Room: 64.7
- Wheelbase: 168
- Length, Overall: 253.3
- Width, Max w/o mirrors: 80
- Height, Overall: 82.5
- Overhang, Front: 38.3
- Overhang, Rear w/o bumper: 47.2
- Cab to Axle: 60
- Cab to End of Frame: 107.2
- Frame Width, Rear: 34.2
- Ground Clearance, Front: 8.6
- Ground Clearance, Rear: 8.6
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Model Group: F-Series Chassis
- Vehicle Segment: Chassis
- Vehicle Type: Extended Cab
- Body Cab Style: Extended Cab
- Engine Displacement Units: 6.7
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 4
- Country of Origin: United States Ford Incomplete Vehicle
Details
- Ford Connectivity Package (1-Year Included)
- GVWR: 16,500 Lb Payload Package
- Internet access capable: 5G Modem - Ford Connectivity Package
- 6 Speakers
- AM/FM radio
- Radio: AM/FM Stereo with MP3 Player
- SYNC 4
- Air Conditioning
- Power steering
- Power windows
- Remote keyless entry
- Steering wheel mounted audio controls
- Traction control
- 4-Wheel Disc Brakes
- ABS brakes
- Dual front impact airbags
- Dual front side impact airbags
- Emergency communication system: SYNC 4 911 Assist
- Front anti-roll bar
- Low tire pressure warning
- Overhead airbag
- Passenger cancellable airbag
- Rear anti-roll bar
- Brake assist
- Delay-off headlights
- Fully automatic headlights
- Panic alarm
- Security system
- Speed control
- Dual rear wheels
- Heated door mirrors
- Power door mirrors
- Turn signal indicator mirrors
- Compass
- Front reading lights
- Illuminated entry
- Outside temperature display
- Overhead console
- Passenger vanity mirror
- Tachometer
- Telescoping steering wheel
- Tilt steering wheel
- Trip computer
- Split folding rear seat
- Front Center Armrest w/Storage
- Wheels: 19.5" x 6" Argent Painted Steel
- Variably intermittent wipers
- 4.88 Axle Ratio
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- Front Side Air Bag
- Front Head Air Bag
- Rear Head Air Bag
- A/C
- Security System
- AM/FM Stereo
- ABS
- Cruise Control
- Four Wheel Drive
- Dual Rear Wheels
- 8 Cylinder Engine
- Turbocharged
- Diesel Fuel
- Daytime Running Lights
- Keyless Entry
- Power Door Locks
- Heated Mirrors
- Power Mirror(s)
- Pass-Through Rear Seat
- Power Steering
- Adjustable Steering Wheel
- Traction Control
- Power Windows
- Intermittent Wipers
- A/T
- MP3 Capability
- Variable Speed Intermittent Wipers
- Steering Wheel Audio Controls
- Immobilizer
- Automatic Headlights
- Integrated Turn Signal Mirrors
- Passenger Vanity Mirror
- Driver Adjustable Lumbar
- Transmission w/Dual Shift Mode
- Tow Hooks
- Tire Pressure Monitor
- Trip Computer
- Bluetooth Connection
- Telematics
- Brake Assist
- Auxiliary Audio Input
- Rear Bench Seat
- WiFi Hotspot
- 10-Speed A/T
- Smart Device Integration
- Front Collision Mitigation
- Requires Subscription
